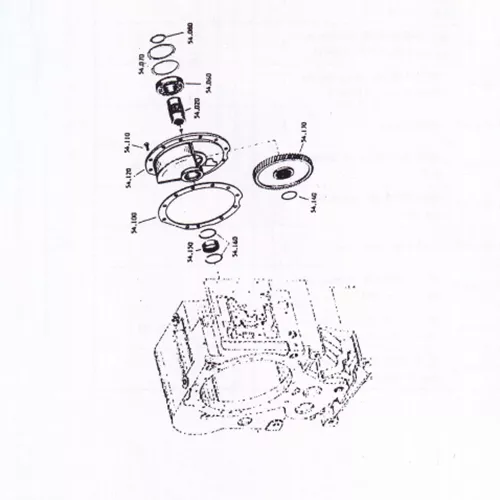

| YD13155 PTO2部件明细表 P.T.02 | ||||
| 位置号 Fig.No. | 零件号(标准号) Part No. (Standard No.) | 名称及规格 Specification | YD13006 | 备 注 Remark |
| 013 | ||||
| 010 | YD13355015 | 取力器轴P.T.02 shaft | 1 | |
| 020 | YD13354002 | 传动齿轮Trans gear | 1 | |
| 040 | GB/T276-1994 | 轴承Bearing 620945×85 ×19 | 1 | GB/T276-1994 |
| 060 | 0750116259 | 轴承Bearing 620945×85 ×19 | 1 | |
| 100 | YD13355014 | 泵法兰Pump flange | 1 | |
| 110 | YD13355004 | 纸垫Gasket | 1 | |
| 120 | 0636015077 | 螺栓Bolt M8×20 DIN933 8.8 | 7 | GB/T898-1988 |
| 140 | YD13221006 | 吸油管Suction pipe M14 | 1 | |
| 150 | 4642211001 | 油管组件Oil piping | 1 | |
| 160 | YD13321002 | 管接头Joint M14×1.5/ M18×1.5 | 1 | |
| 170 | 0634801038 | 紫铜垫圈Copper washer 14 | 4 | Q20-03 |
| 122 | GB/T6170-1986 | 螺母Nut M8 | 7 | |
| 124 | GB/T96-1985 | 垫片Gasket 8 | 7 | |
