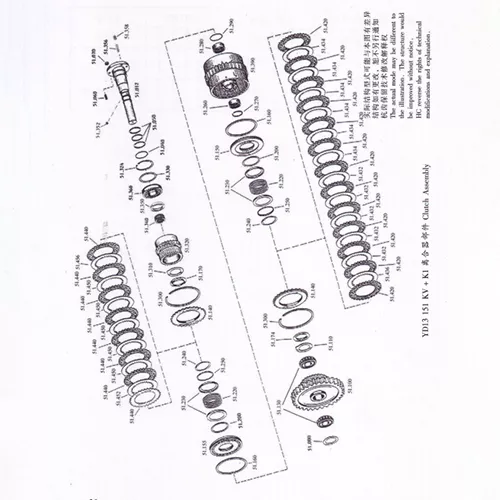

| YD13152 离合器部件明细 Parts List of Clutch | ||||
| 位置号 Fig.No. | 零件号(标准号) Part No. (Standard No.) | 名称及规格 Specification | YD13006 | 备 注 Remark |
| 012 | YD13352009 | 轴Axle(152) | 1 | |
| 040 | 0634313536 | 0型圈0-ring 49×3 | 1 | |
| 050 | 0734401106 | 搭扣密封环Sealing ring | 3 | |
| 060 | GB/T898-1988 | 螺柱Stud M8×18 | 3 | |
| 070 | GB/T6170-2000 | 螺母Nut M8 | 3 | |
| 080 | 0769120468 | 调整垫片Regulating shim | 1 | |
| 100 | YD13351006 | 齿轮Gear(KV/R)Z=50 | 1 | |
| 110 | 0730150774 | 承磨垫Thrust washer DUP | 1 | |
| 130 | YD13351007 | 轴承Bearing WTB35×64× 38 | 1 | |
| 140 | 4642308185 | 承压板Press board | 2 | |
| 150 | 4644353051 | 活塞Piston | 1 | |
| 155 | 4644353051 | 活塞Piston | 1 | |
| 160 | 0750112141 | 异形密封环Special sealing ring | 2 | |
| 170 | 4644351094 | 止动片Limit plate | 1 | |
| 174 | 4642308555 | 止动片Limit plate | 1 | |
| 200 | 0750112140 | 异形密封环Special sealing ring | 2 | |
| 220 | 0732041183 | 压力弹簧Pressured spring | 2 | |
| 230 | 4642308083 | 导向环Guide ring | 4 | |
| 240 | 0630531346 | 挡圈Retaining ring AV55 | 2 | |
| 250 | 4642308084 | 导向环Guide ring | 2 | |
| 260 | 0750115182 | 滚针轴承Needle bearing 35 ×42×20 | 1 | |
| 270 | 0730513610 | 弹性挡圈Flexible retaining ring | 1 | |
| 280 | 0635303204 | 滚针轴承Needle retaining ring | 1 | |
| 290 | 0730513611 | 弹性挡圈Flexible retaining ring | 1 | |
| 300 | 0769124115 | 弹性挡圈Flexible retaining ring | 2 | |
| 310 | 0730150779 | 承磨垫Thrust washer DUP | 1 | |
| 320 | YD13252009 | 齿轮Gear(K2)Z=64/23 | 1 | 组件Group unit |
| 360 | YD13352015 | 滚柱轴承Roller bearing | 1 | |
| 370 | YD13352010 | 挡圈Retaining ring | 3 | |
| 390 | YD13251001 | 离合器组件Clutch assy. | 1 | 组件Group unit |
| 420 | 0501309329 | 外摩擦片Ex.frictional disc S=2.0 | 13 | |
| 432 | 4642308330 | 内摩擦片In.frictional disc S=1.5 | 5 | |
| 434 | 4642308332 | 内摩擦片In.frictional disc S=2.0 | 6 | |
| 436 | 0769129011 | 内摩擦片In.frictional disc S=1.5/2,0/2.5 | 1 | 调整用For regu- lating |
| 440 | 0501309329 | 外摩擦片Ex.frictional disc S=2.0 | 9 | |
| 450 | 4642308330 | 内摩擦片In.frictional disc S=1.5 | 6 | |
| 452 | 4642308332 | 内摩擦片In.frictional disc S=2.0 | 1 | |
| 456 | 0769129011 | 内摩擦片In.frictional disc S=1.5/2,0/2.5 | 1 | 调整用For regu- lating |
